Technical Wall Sections

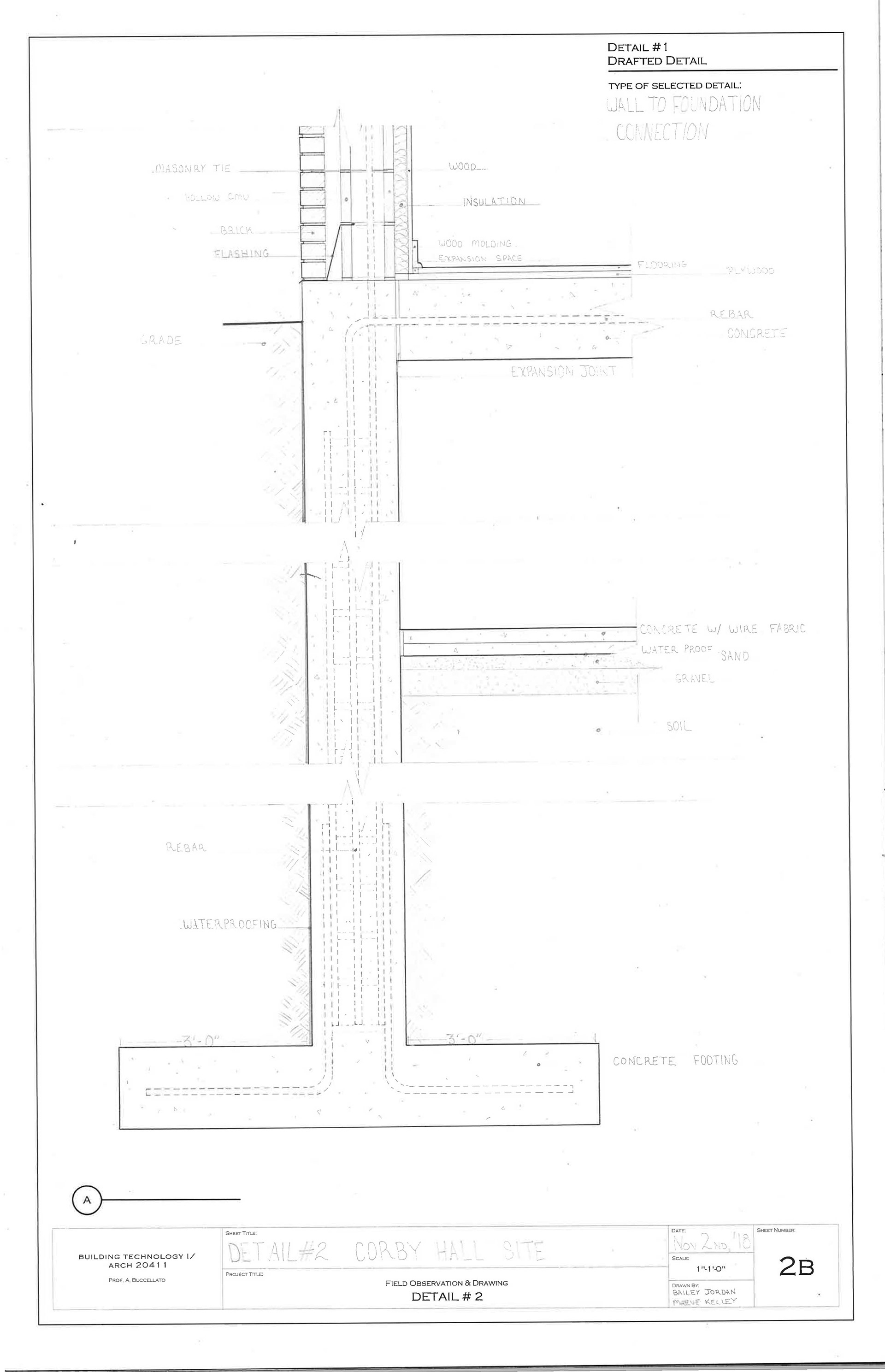

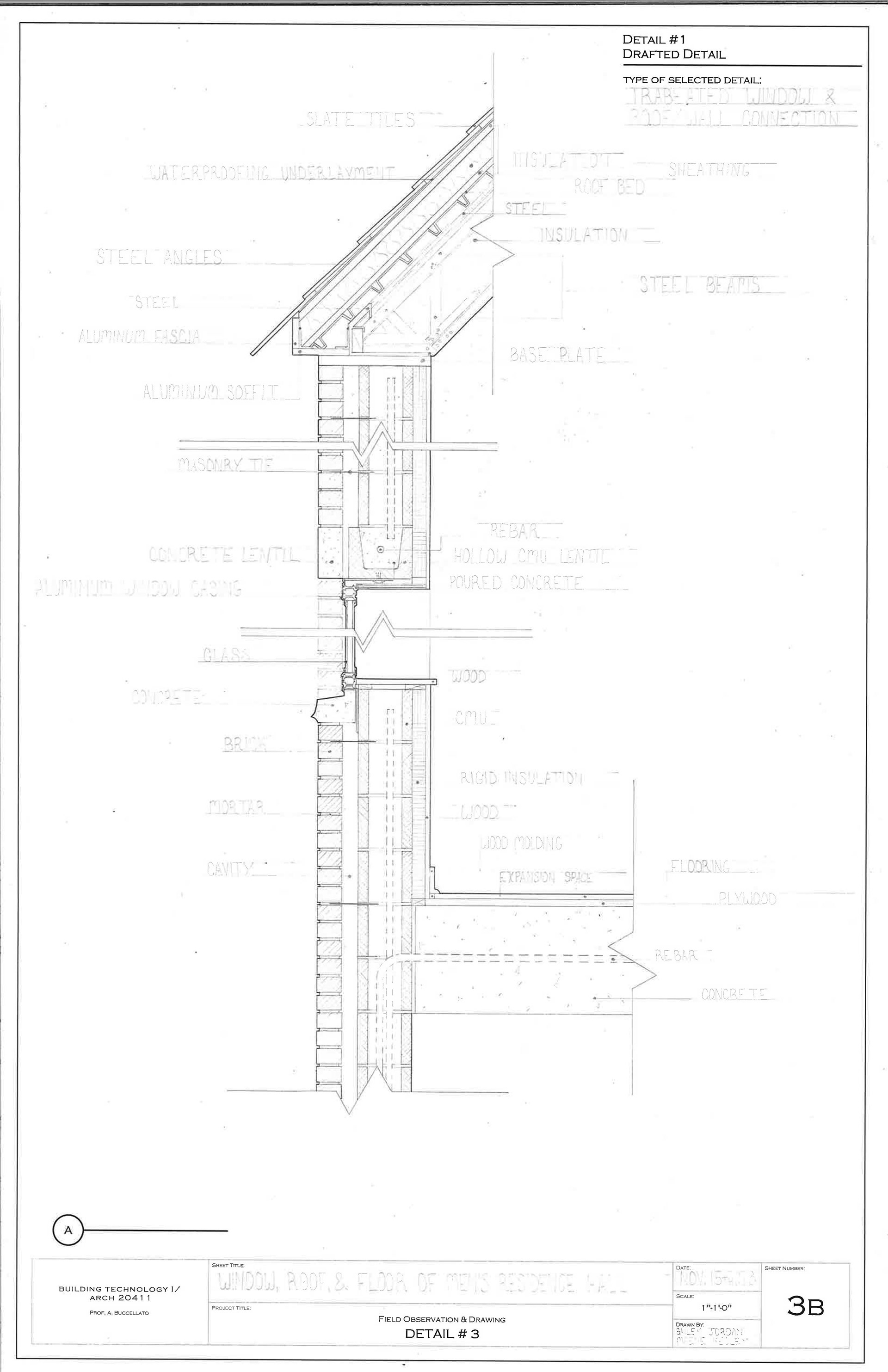

After touring several active construction sites on campus, technical wall sections are drawn for the Building Technology I course. The first section pays particular attention to the window condition, as well as how the roof and floor meet the wall. The second section focuses primarily on the foundation condition, as well as an underground floor condition and an above ground floor condition.
Professor Aime Bucellato. November 2018.
Hand drafted renderings.
