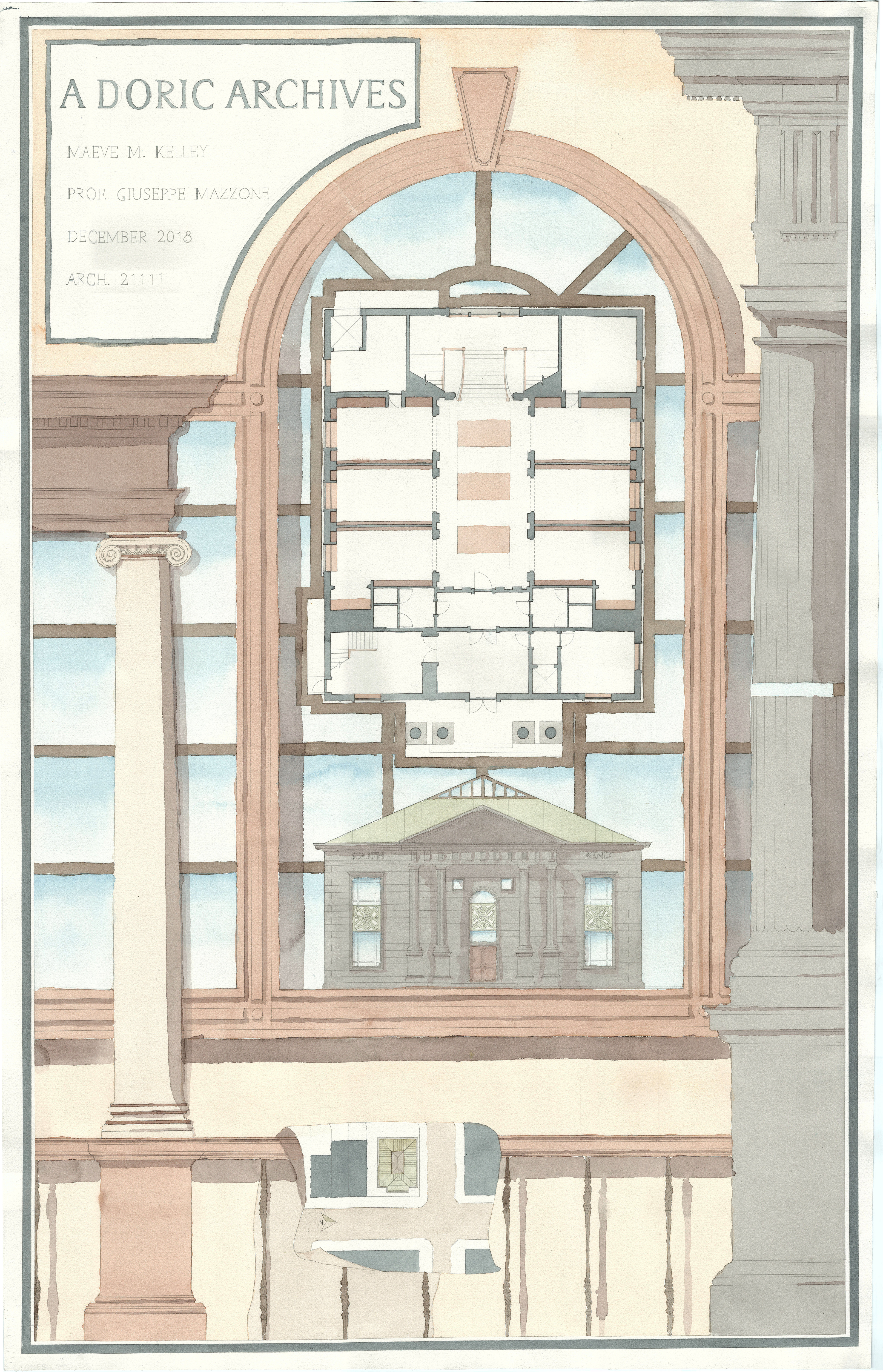

Watercolored analytique featuring the site plan, first floor plan, and front elevation.

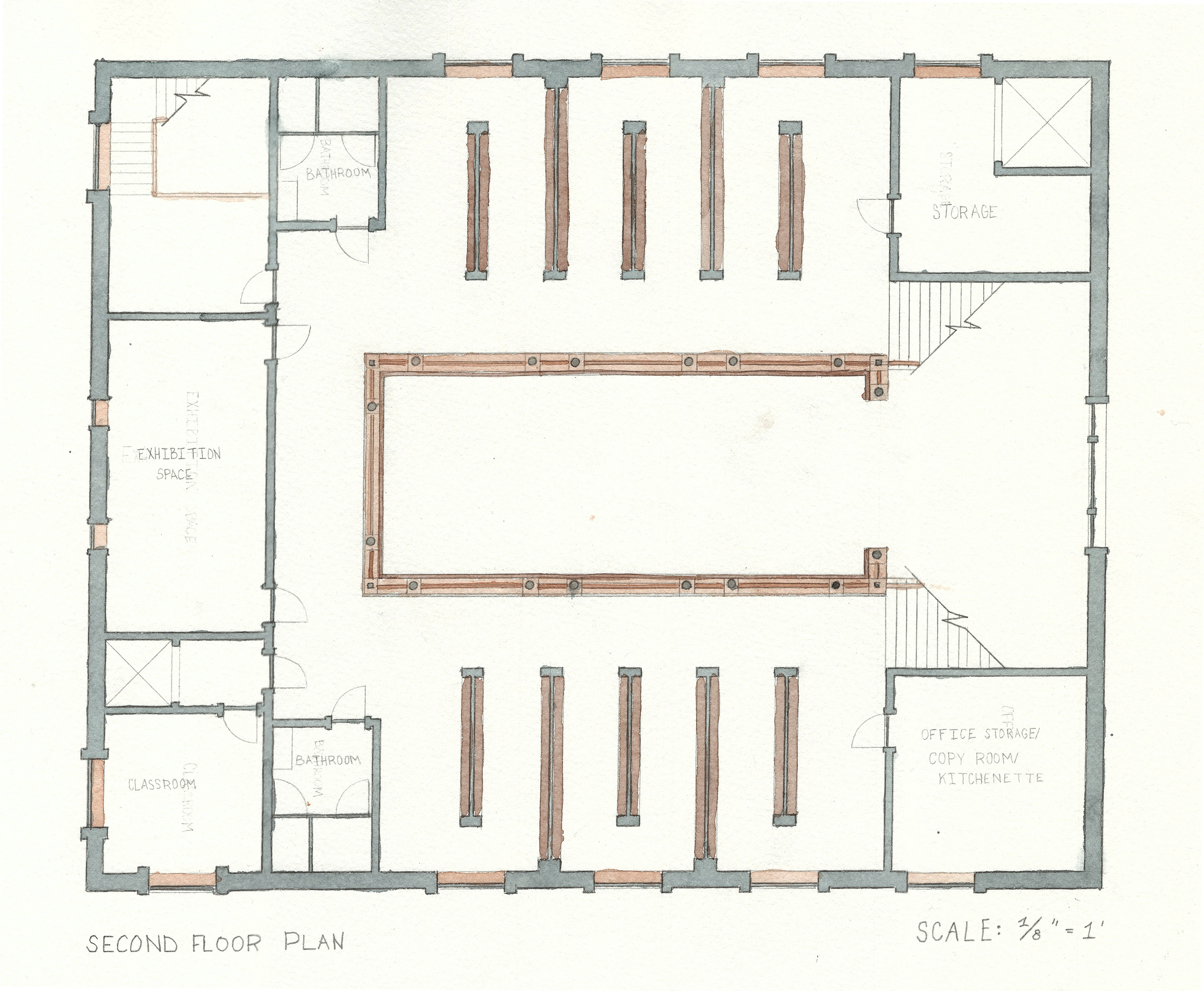

Second Floor Plan

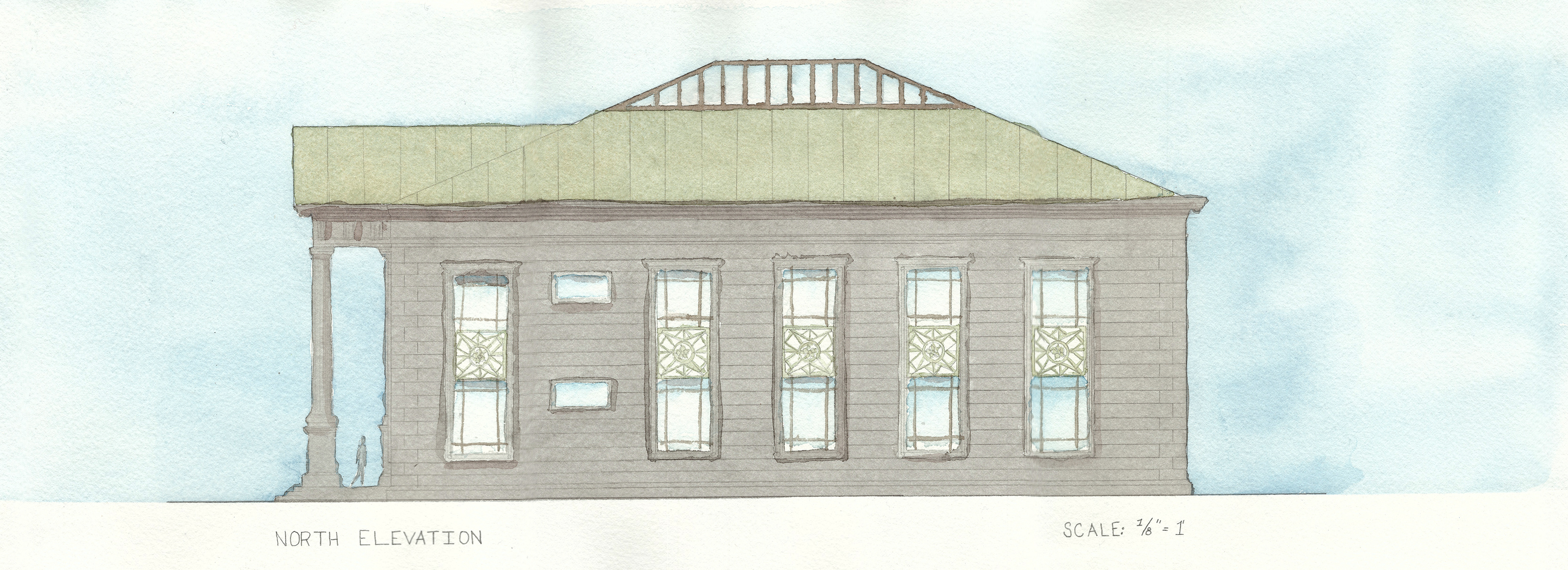

Side Elevation

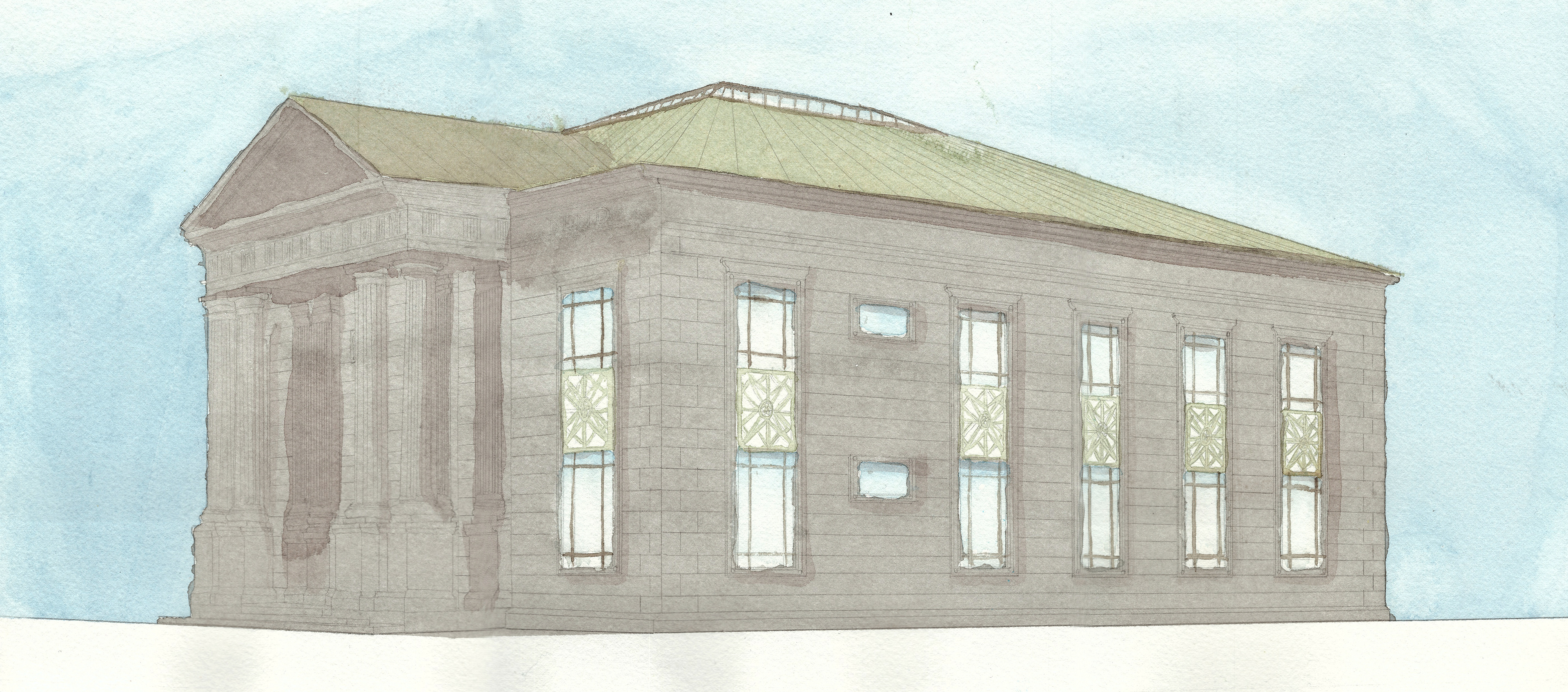

Exterior Perspective

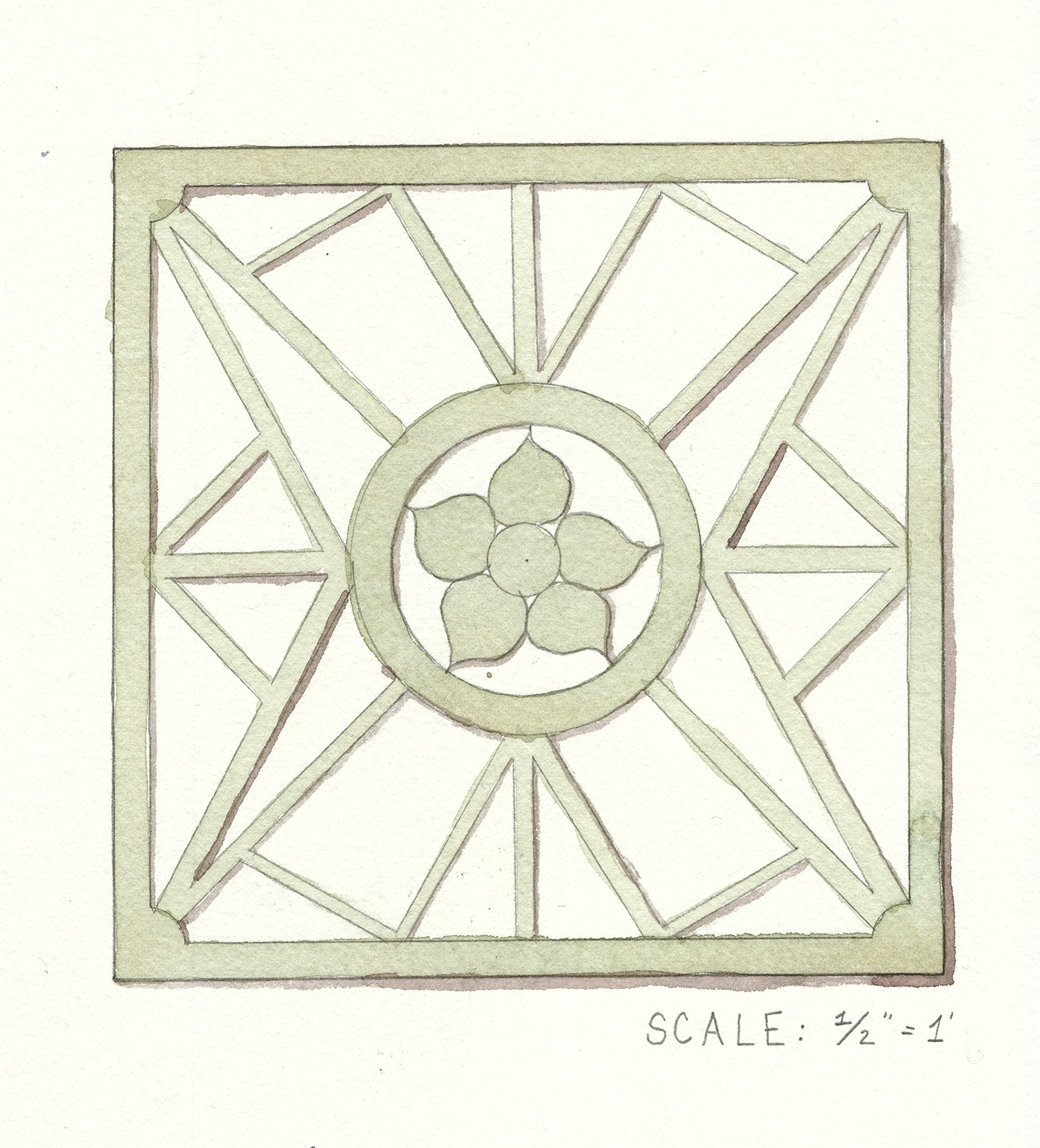

Window Grate Detail

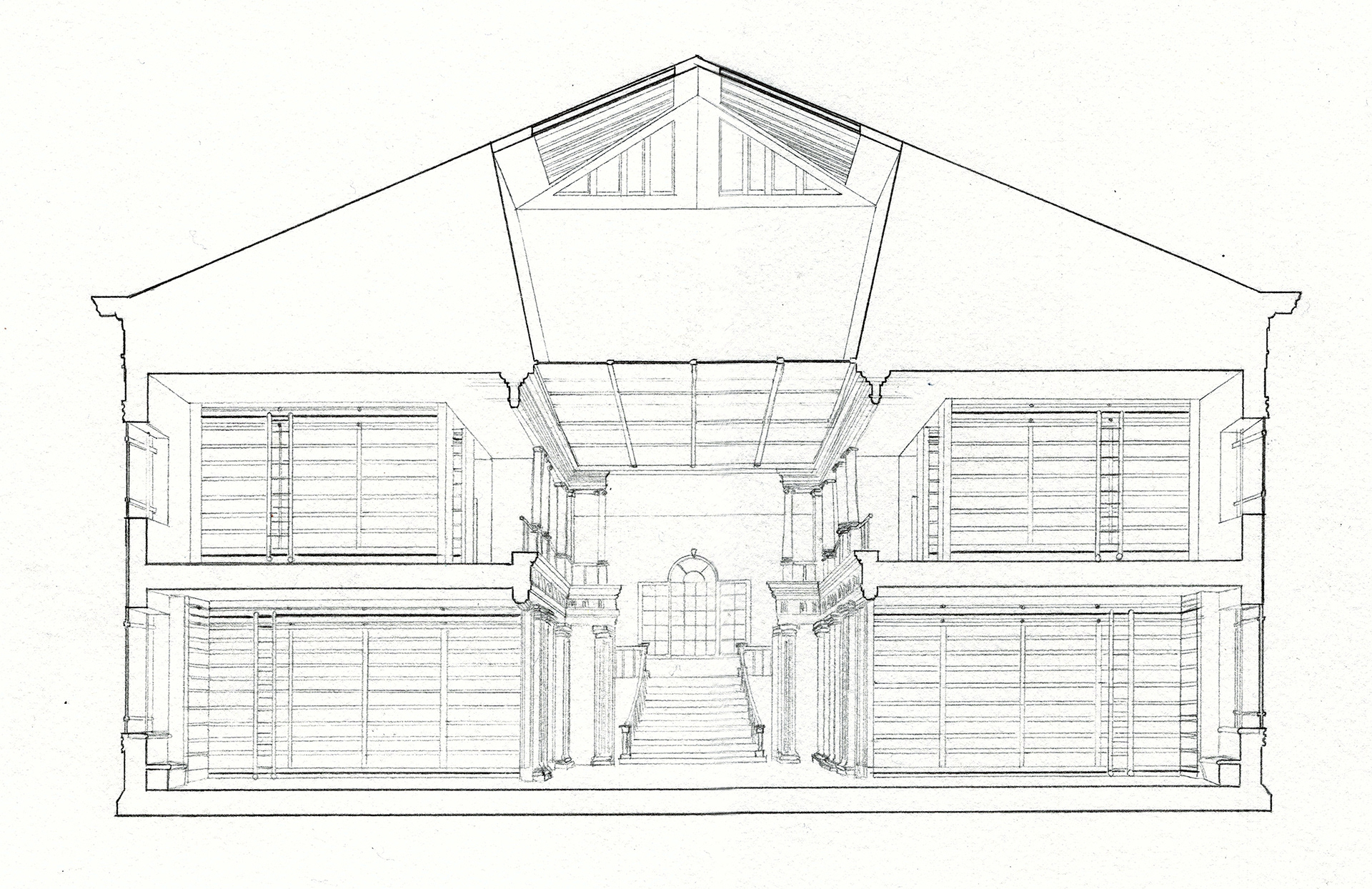

This archives building, designed for downtown South Bend, Indiana, is ruled by the doric order. It is organized around a double height reading room, with stacks on either side on the ground floor and a grand skylight overhead. The second floor includes additional stacks as well as administrative spaces and a featured gallery. The double story windows lend a civic quality to the exterior along with the traditional temple portico front façade.
Watercolored analytique featuring the site plan, first floor plan, and front elevation.
